Round knife cloth cutting machines



Eastman Cardinal Model 548



Brand leading round knife clothing cutting machine for general purpose use on cloth & textiles etc.



A more manoeuvrable version from the Eastman Round Knife range.  This general-purpose round knife machine delivers the same wide range of uses with the advantage of a smaller lighter package.  Available with different blade sizes of  4", 5.25" or 6".  The 5.25" version is the most popular.



Motor
220/230v, 1ph(UK Model)

Stone Grits:
120 Heavy:Available
150 Medium:Available
220 Fine:Available

Blades:
Double Bevel:Available
Teflon Coated:Available
Carbon Steel:Standard
High Speed Steel:Optional
Slotted:Optional
Grooved:Optional
Weight:21 lbs., 9.52 kg.
Horsepower:2.34 hp, 1ph/.34 hp, 3ph
Blade Size:4", 5 1/4", 6", 10.2cm, 13.3cm, 15.2cm
Cutting Capacity:2 1/8", 3 1/8", 3 1/2", 10.2cm, 13.3cm, 15.2cm


Eastman Cardinal 534

Also available is the Eastman 534 cardinal which has been specially designed for low lays of wool, cotton, silk, and synthetics etc, the 534 provides lightweight manoeuvrability with more than enough power for positive cutting of these materials.

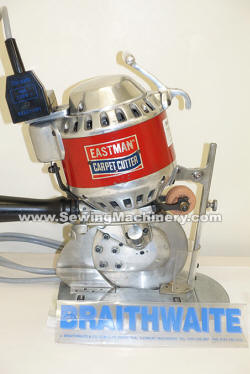

Eastman Cardinal Carpet Cutter

The Eastman carpet cutter 548CC is designed with a special purpose knife mounting system to cut cleanly through most pile types and backings, allowing for cutting along and against the grain in curves, or along straight edges with minimal effort, reducing operator fatigue.

Eastman Cardinal 562 and 567

The Eastman heavy duty 562 and Super-duty 567 models further expand the cardinal round knife range by adding more powerful motors and blade sizes up to 7.5"



Eastman Cardinal 548

Eastman Cardinal sharpener

Cardinal 548 from Eastman



Comes complete in box with tools, spares, spare blade & instructions.



Example Eastman Cardinal models

Eastman 534 cardinalEastman Cardinal 567Eastman carpet cutter cardinal
Eastman 534Eastman 567Eastman carpet cutter 548CC
lighter & smaller Eastman cardinalSuper-duty 7.5" heavy modelSpecially made for cutting carpets



Spare blades for Eastman Cardinal Model 548, 534, 562 and 567 available form our Parts Dept.
