Highlead GG0328-1

Walking foot Zigzag Sewing Machine

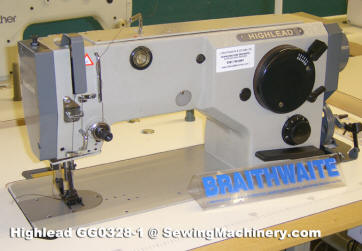

Highlead GG0328-1
The Highlead GG0328-1 is a walking foot zigzag sewing machine designed for use with medium and medium-heavy weight materials.

It features an adjustable top feed walking foot and bottom feed mechanism that is suitable to sew materials such as canvas, plastics, webbing, leather, synthetics, tarpaulin & heavier than normal standard fabrics or difficult to feed technical textiles.

A wide range of sewing threads can be used, with the GG0328-1 being able to sew with up-to size 20* synthetic thread (or size 30 cotton thread) + V46, V69, V92 & V138* heavy duty threads etc.

This Highlead model employs a parallel vertical needle bar motion for stronger striking power and a semi-automatic lubrication system which can reduce servicing costs.

A large Zigzag width of up-to 10mm + a stitch length of up-to 5mm is available and fully adjustable by the operator.

The GG0328-1 model also has the option to sew with a straight style stitch by setting the zigzag width to zero.

Walking foot Zigzag Highlead GG0328-1

The sewing hook & base containing the lower bobbin is twice the normal size, resulting in less bobbin changes, which is of particular use when using thicker than normal threads.



DPx35 sewing needles are used with this machine between sizes 100 to 140

Large sewing machine hook GG0328-1

Highlead GG0328-1 industrial zigzag sewing machine can be used on Sails, leather goods, bags, canvas/plastic, handbags, nets, webbing, bandages, straps, Velcro, Neoprene, body supports and technical textiles etc.


Features:
  • Walking Foot
  • Medium to medium-heavy weight zigzag
  • Large Hook & Base
  • Up-to 10mm large Zigzag width
  • Reverse stitch lever
  • Vertical thread take-up assembly
  • Easy width adjusting levers
  • Semi automatic oil lubrication
  • Automatic hook lubrication
Specification:
  • Max sewing speed: 1800rpm
  • Stitch length: 0-5mm
  • Zigzag width 0-10mm
  • Needle bar stroke: 36mm
  • Take up stroke: 82mm
  • Presser foot lift by hand: 7mm
  • Presser foot lift by knee: 10mm
  • Working space: 260mm x 115mm
  • Needle size: DPx35 size 100 to 140.
Highlead GG0328-1 Walking Foot Heavy Duty Zigzag
Highlead GG0328-1 walking foot zig zag

*maximum thread size may differ between makes/types
