Latest Sale Brother S-7300A-403

From £1235 +VAT

Brand new assembled ready for use !!

Price includes: assembled unit stand, table top, cotton stand, drawer, instructions & makers warranty.

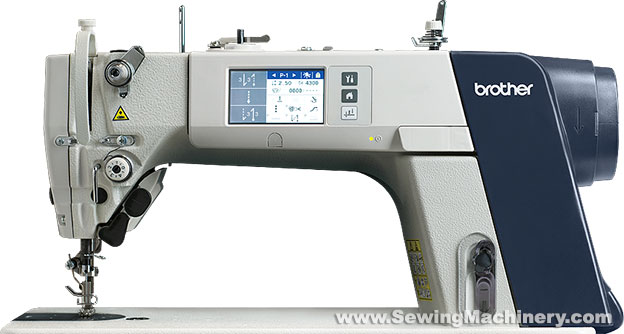

Brother S-7300A NEXIO

   Direct Drive Sewing Machine with Electronic Feed & Thread Trimmer

Brother S7300A

Brother S-7300A industrial sewing machine with direct drive, automatic thread trimmer and Brother's specially developed electronic feeding system.

Brother introduced the first lockstitch industrial sewing machine which incorporates an electronic feed system connected directly to a stepping motor. The feed motion can be changed according to sewing materials, allowing suitable stitches on various work without having to make mechanical adjustments.

When the built-in sensor detects material thickness difference, the feed motion and sewing speed is automatically changed for that thickness.

Easier operation with a stable sewing pitch so even unskilled operators can carry out quality stitching.

Needle breakage is a problem in sewing factories and Brother sewing machines can help to provide a solution by incorporating a needle breakage prevention function.  With the electronic feeding system, it controls the timing motion of needle and feed dog while stitching which helps to reduce needle breakage.

The machine is equipped with a USB port for easy sewing program storage and software updates.

Brother S7300A-403 model assembled ready with unit stand and top @ £1235 +VAT

Brother S7300A-903 model is also available which incorporates an auto foot lifter device.

See S7300A PDF leaflet for more information
Brother S7300A nexio

Brother Direct Drive

The Brother developed direct drive motor and control box maximize the industrial sewing machines performance.

Brother S7300A direct drive motor

Built-in Operation Panel

The S7300A incorporates a user friendly digital operation panel which is built in-to the sewing machines arm

Brother S7300C digital control panel

Modern design

A pleasing modern appearance with the latest design from Brother Industries Ltd.  Now assembled ready to use & on show at Braithwaite's Manchester industrial sewing machine warehouse.

Brother S7300A-403 on display in manchester england

For more information please call 0843 289 7560

Brother Nexio S7300A specification
S-7300A--403 -405
Lubrication typeMinimum lubrication Minimum lubrication
ApplicationMedium materials Heavy materials
Sewing speed (max)@4mm and under:5000 spm (above 4mm = 4000) @4mm and under:4500 spm (above 4mm = 4000)
Back tacking speed (max)3,000 sti/min 3,000 sti/min
Max. stitch length5mm Max. 7mm (default setting : 5mm)
Presser foot heightPresser bar lifter: 6mm, knee lifter: 16mm Presser bar lifter: 6mm, knee lifter: 16mm
Needle bar stroke31mm 35 mm
Needle (DBx1•DPx5)#11-#18 (Nm75-110) #19-#22 (Nm120-140)
Height of feed dog0.8mm 1.2mm
Weight34.5kg 34.5kg
MotorAC servo motor AC servo motor
Power supply200-230V 200-230V

S-7300A-903 including automatic foot lifter device = £1350 +VAT

S7300A Nexio PDF leaflet

S-7300A instructions
