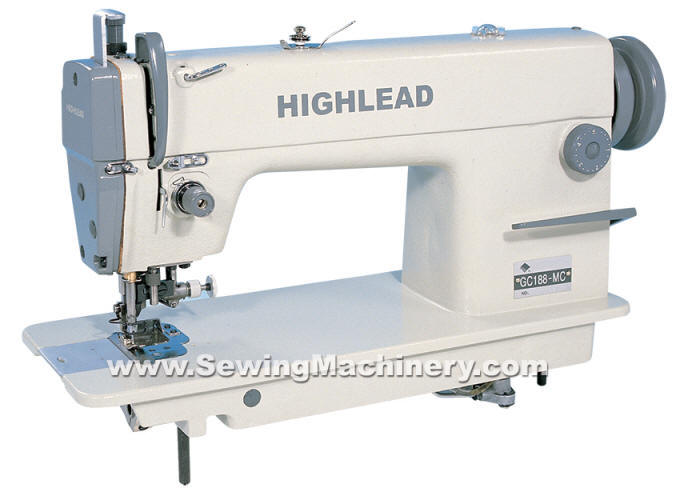

Highlead GC188-MC

Industrial Sewing Machine + Fabric Edge Cutter

The adjustable edge trim device can be engaged for stitching & trimming various types of material or, by a simple pull of a button, it can be disengaged for straight stitching only.

Standard 3.2mm edge trim from right of needle. Optional sizes are available to order.

Supplied with matching unit stand, with choice of heavy duty clutch motor or energy saving electronic servo motor.

• Quality robust construction
• Automatic head lubrication
• Automatic hook lubrication
• Dedicated edge trimming system
• 3.2mm cut width
• Optional 2.4, 4, 4.8 & 6.4mm
• Quiet balanced head

• Max sewing speed: 4500rpm
• Stitch Length: 1-5mm
• Presser foot lift by knee: 10mm
• Lubrication: Auto pump type
• Needle: Size 12 ~ 18
• Needle bar stroke 31.8mm
