Highlead Industrial Sewing Machines

Highlead Sewing Machines

Highlead GG0028-73L MK2

(-73LP with puller feed)

Extra Long Arm Industrial Zigzag Machine



Long arm zigzag sewing machine industrial


The Highlead GG0028-73L MK2 is an extra long arm Zigzag machine designed for use with medium & medium-heavy weight materials.

Up-to 735mm clearance to the right of the needle, which is around 3 times the length of a standard arm industrial Zigzag machine.  The extra long arm clearance is useful when sewing non-standard and larger flowing items.

The purpose built extra long arm is factory cast for greater strength & stability, in comparison with old style cut and piece extended adapted arm models.


Its modern design features: a large Zigzag width of up-to 10mm and a stitch length of up-to 5mm combining together to give functional stitching on a wide range of applications.

The hook containing the lower bobbin is twice the normal size; resulting in less bobbin changes and when combined with the vertical take up lever system, it is of particular use when using thicker than normal threads.

It employs a parallel vertical needle bar motion for stronger striking power and the longer system 134-35 needles are used, including the medium weight size 100, right up-to the heavy weight size 140.

A wide range of sewing threads can be used, with this model being able to sew with up-to size 20 synthetic thread (or size 30 cotton thread) + V46, V69, V92 & V138 heavy duty threads etc.

Zigzag stitching webbing



The Highlead GG0028-73L MK2 is a long Arm Zigzag machine for use on medium to medium-heavy materials and is aimed at job applications where a standard machine is not long enough.

For example:  Large covers, Sails, upholstery panels, inflatable products, awnings, tents, parachutes, gliders, hot air balloons, bed spreads + other large items..



Features:

  • Medium weight Zigzag
  • Extra long Arm
  • Large hook (twice normal size)
  • Up-to 10mm large Zigzag width
  • Reverse stitch lever
  • Vertical thread take-up assembly
  • Easy width adjusting levers
  • Can also approximate a straight stitch.
  • Semi automatic oil lubrication
  • Automatic hook lubrication
Specification:
  • Max sewing speed: 1400rpm
  • Working Area: 735mm x 115mm
  • Stitch length: 0-5mm
  • Zigzag width 0-10mm
  • Needle bar stroke: 36mm
  • Take up stroke: 82mm
  • Presser foot lift by hand: 7mm
  • Presser foot lift by foot: 12mm
  • Needle size: 134-35 size 100 to 140.

Large sewing machine hook GG0028-1L

Options:
  • Rear mounted puller feed unit (LP model only)
  • Electronic needle position motor
  • Automatic foot lifting device
  • Automatic reverse device



Highlead GG0028-73LP

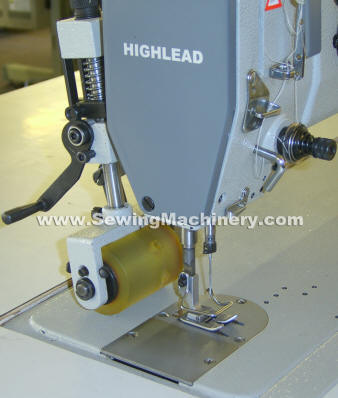

The Highlead GG0028-73LP MK2 model is fitted with a back mounted puller feed unit to give more feeding/pulling power when stitching bigger/longer flowing materials etc.

Puller Feed fitted to LP model only

Highlead Puller feed zigzag sewing

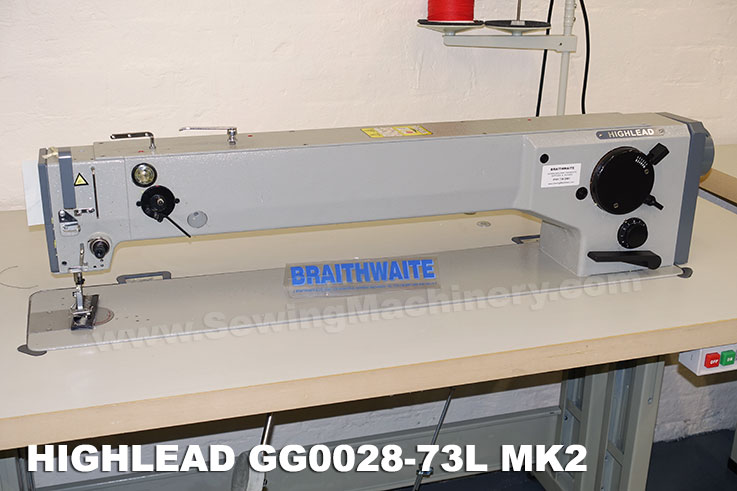

Highlead GG0028-73L MK2 Long arm medium-heavy zigzag

Highlead GG0028-73LP MK2 Long arm zigzag with puller feed device




Highlead GG0028 long arm zigzag MK2
