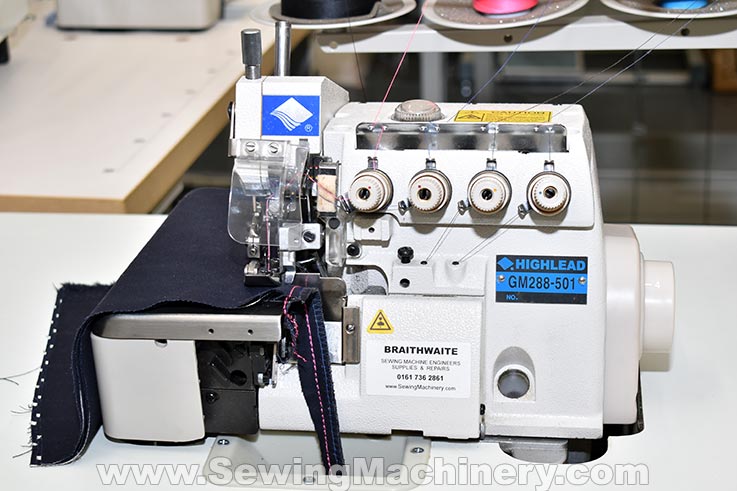

Highlead GM288-501

5 Thread Overlock Sewing Machine  - Jeans model

Heavy duty overlocker with high looper lift

Robust time served design with a superior feeding mechanism for better overall performance and increased versatility.

The GM288-501 is a special purpose sub-class model for overlocking Jeans, work-wear, upholstery & other medium-heavy weight type materials.

It features a high looper lift clearance to accept heavier materials together with a special reinforced internal driving crank shaft, tractor foot device & wider 4.8mm heavy duty gauge set sewing equipment.

Fully enclosed oil system with running speeds at up-to 6500 stitches per minute.

Smooth & quiet operation using a balanced overlocker sewing head with easy to use operator adjustments such as stitch size and feeder movement.

Highlead GM288-501 comes assembled with unit stand, wooden table top, 5-way cotton stand & quiet electronic servo motor (standard UK plug).

On show at our Manchester warehouse

• 5 thread stitch formation (can also be used 3 thread)
• Twin needle (can also be used with single needle)
• High looper lift
• Reinforced main drive crank shaft
• 4.8mm needle gauge
• Tractor foot device
• Full automatic enclosed oil system
• Silicone needle cooling device
• Differential feed adjusting lever
• Dial adjusting stitch regulator
• Robust time served design
• Balanced & quiet overlocker sewing head

• Medium-heavy Jeans & work wear model
• 4.8mm gauge set & tractor foot device.
• Max sewing speed: 6500spm
• Stitch length: 1-3.6mm
• Presser foot lift 6.5mm
• Needle standard B27
• Motor: Servo 220-240V (quiet type)
