Highlead GM900-ME1

Elasticating Overlock Sewing Machine with Metered Elastic Device

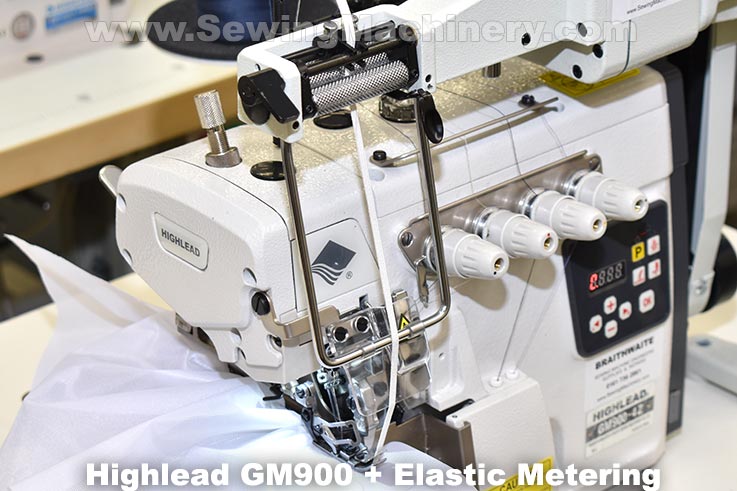

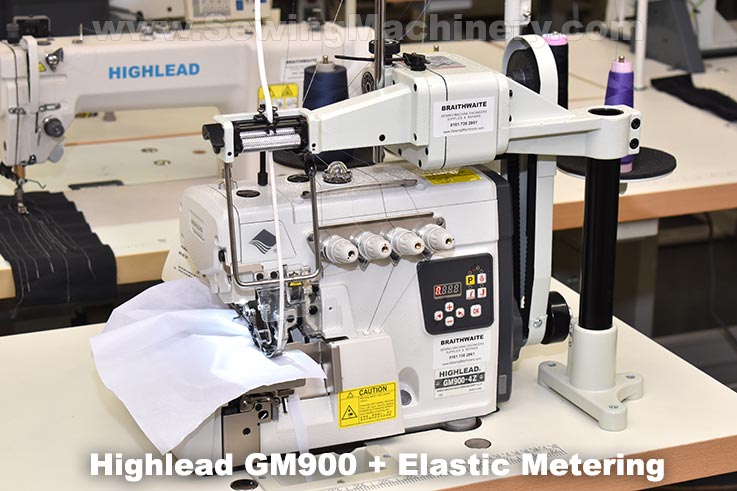

The elastic feeding device is mounted above, and in-line with, the stitching area & foot.  The amount of elastic feeding through the devices rollers, relative to the fabric feeding through the machine, can be finely & accurately adjusted to give the desired tensioned finish.  Elastic feed tension is controlled for consistent results from garment to garment.

The overlock has a fully enclosed oil system and the operating speed is adjustable up-to 6500 r.p.m (subject to material type & settings) via the built in operator control panel.

The high efficiency built-in direct drive servo motor operates quietly with greater speed control for the operator & allows for up-to 60% energy savings when compared to older style V-belt driven overlocker models.

Smooth & quiet operation using a robust balanced overlocker with easy to use operator adjustments such as stitch size, differential feeder movement and independent metered elastic control.

Different models available for 3 thread or 4 thread stitch configuration with sub-class variants for Light, Light-Medium & Medium weight fabrics.

Features:

• Metered elastic control
• Full automatic enclosed oil system
• Silicone needle cooling device
• Differential machine feed adjusting lever
• Independent elastic feed adjusting dial
• Dial adjusting stitch regulator
• Direct Drive servo motor
• Balanced & quiet overlocker sewing head

• Max sewing speed: 6500spm
• Stitch length: tp-to 3.8mm
• Presser foot lift 5.5mm
• Needle standard B27
• Other specs. subject to model & sub-class
