Highlead GA2698-1 NPAA
Heavy duty extra long cylinder arm
Specialist Feed up the arm model

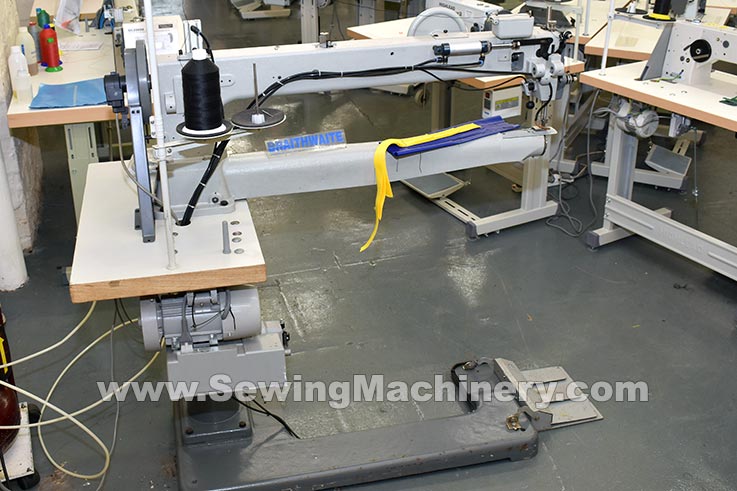

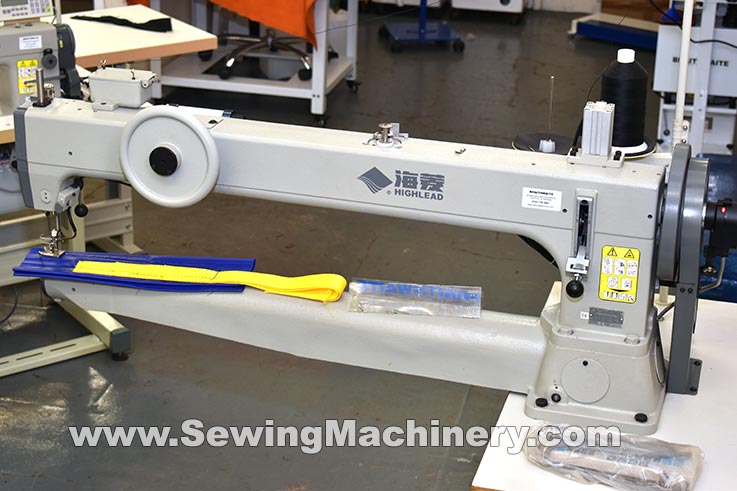

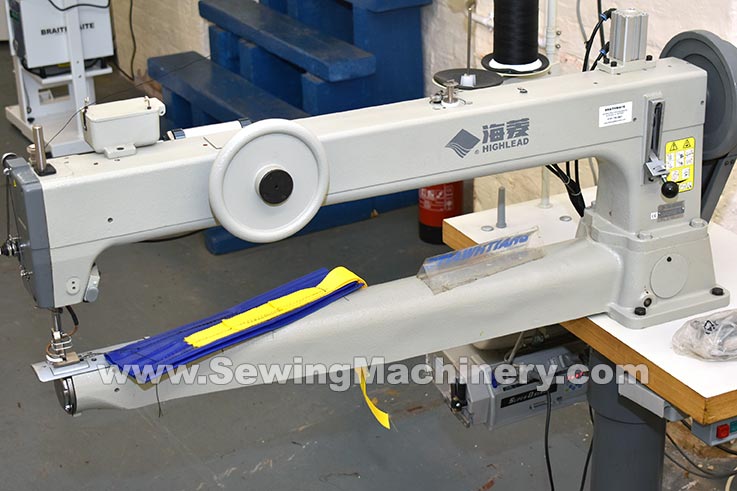

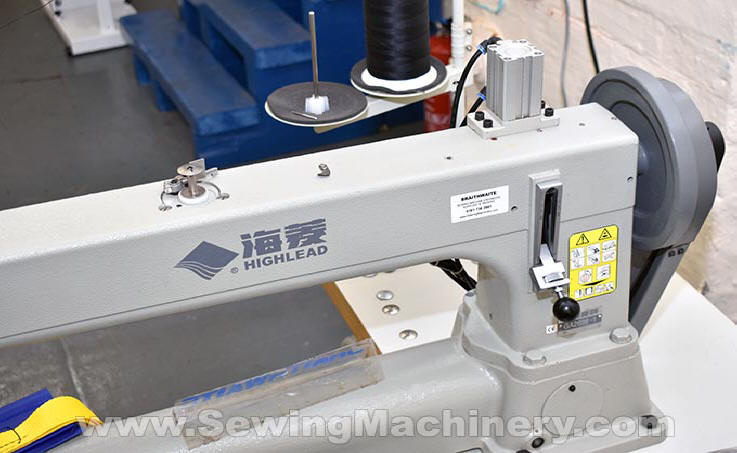

Highlead GA2698-1 (NPAA) heavy duty long cylinder arm sewing machine.
Used specialist feed up arm extra-long cylinder bed (up-to 96cm) single needle lockstitch machine with drop feed and large shuttle hook assembly.
Including extra heavy counter weight pedestal unit stand and table top for cylinder arm overhang clearance.
Thread weight capacity up-to metric 8's - Nm-30/3 to 8/3 - needle size up-to 280 - typical needle size fitted #26/230
Also fitted with the (optional extra) slow speed torque pulley device.
High spec NPAA version with extra features & equipment including:
1HP heavy duty electronic needle position motor with encoder (full function model).

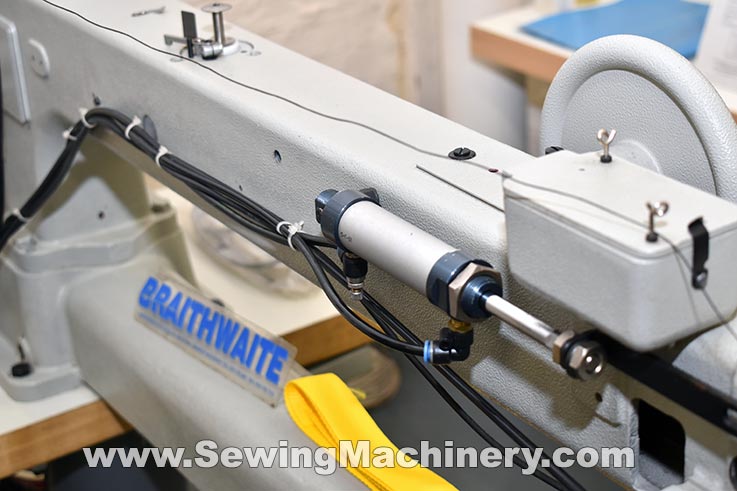

Air cylinder assisted reverse feed device.
Air cylinder operated foot lift device.

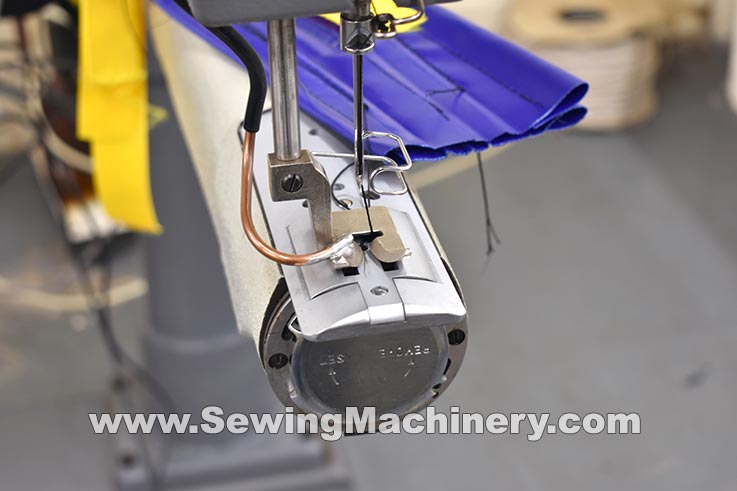

Forced air needle cooler device.
Foot pedal set (3 way).
Air connection and solenoid bank set.
Used specialist feed up arm extra-long cylinder bed (up-to 96cm) single needle lockstitch machine with drop feed and large shuttle hook assembly.
Including extra heavy counter weight pedestal unit stand and table top for cylinder arm overhang clearance.
Thread weight capacity up-to metric 8's - Nm-30/3 to 8/3 - needle size up-to 280 - typical needle size fitted #26/230
Also fitted with the (optional extra) slow speed torque pulley device.
High spec NPAA version with extra features & equipment including:
1HP heavy duty electronic needle position motor with encoder (full function model).
Air cylinder assisted reverse feed device.
Air cylinder operated foot lift device.
Forced air needle cooler device.
Foot pedal set (3 way).
Air connection and solenoid bank set.
