Highlead GC2698-1BN Narrow Cylinder Arm Sewing Machine

Heavy-Duty Industrial Walking Foot Sewing Machine

Narrow Cylinder Arm with Triple Feed, Needle Feed and Enlarged Hook

Highlead GC2698-1BN narrow cylinder arm industrial walking foot sewing machine


The Highlead GC2698-1BN is a heavy-duty, single-needle industrial lockstitch sewing machine featuring a narrow cylinder arm, compound triple-feed walking foot system and enlarged 1.6-times-capacity hook and bobbin assembly.

Its powerful triple-feed mechanism combines bottom feed, needle feed and alternating walking foot top feed. These three feeding actions work together to provide positive material control, helping to prevent unwanted material displacement and produce accurate, consistent stitching.

The versatile narrow cylinder arm design is particularly useful when sewing three-dimensional products and smaller items that can be difficult to handle on a conventional flatbed sewing machine. The free-arm configuration provides improved access and manoeuvrability when working with products such as bags, gloves, hats, shoes, small leather goods, straps, filters and other specialist manufactured items.

The enlarged hook and bobbin assembly offers approximately 60–70% greater thread capacity than a standard-size hook and bobbin. This allows longer sewing runs with fewer bobbin changes, improving productivity and reducing interruptions during production.

The Highlead GC2698-1BN is built for demanding industrial applications, with robust construction designed for reliable long-term operation. Additional features include a conveniently positioned front-mounted bobbin winder for easy access and quick bobbin changes, together with a combined reverse stitch lever and stitch length adjustment mechanism.

The GC2698-1BN is supplied as standard on an off-the-arm unit stand. The cylinder arm extends beyond the end of the stand, providing easier access to the sewing area and improved versatility when handling three-dimensional workpieces.



Key Features:

  • Enlarged 1.6-times-capacity hook and bobbin assembly
  • Versatile narrow cylinder arm design
  • Heavy-duty compound triple-feed sewing system
  • Walking foot, needle feed and bottom feed
  • Robust industrial construction
  • Reverse stitch lever
  • Combined reverse lever and stitch length adjustment
  • Convenient front-mounted bobbin winder

Technical Specifications:

  • Maximum sewing speed: 2,400 stitches per minute (spm)
  • Maximum stitch length: 6 mm
  • Needle bar stroke: 33.4 mm
  • Take-up stroke: 59.6 mm
  • Cylinder diameter: 47 mm
  • Presser foot lift by hand: 5 mm
  • Presser foot lift by foot: 14 mm
  • Needle system: DPx35, sizes 14–19 (90–120)

Optional Accessories and Equipment:

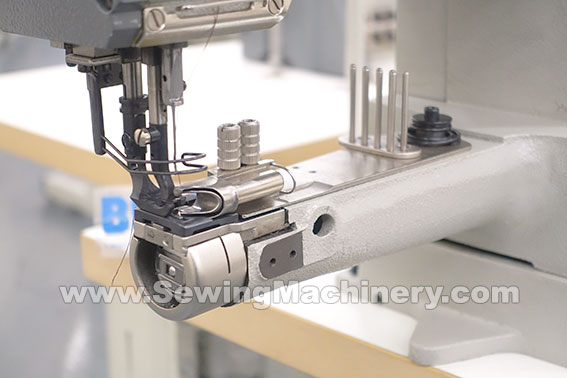

  • Binding attachment conversion kit
  • Professional roller-type drop-down edge guide
  • LED needle light kit
  • Single-sided presser foot set (zipper foot set)
  • Piping presser foot sets (various sizes)
  • Servo motor
  • Servo motor with electronic needle positioning, adjustable speed and acceleration control
Highlead GC2698-1BN enlarged-capacity bobbin compared with a standard-size bobbin
Highlead enlarged-capacity bobbin compared with a standard-size bobbin.
Highlead GC2698-1BN narrow cylinder arm sewing machine design
Narrow cylinder arm design for sewing three-dimensional products
Highlead GC2698-1BN compound triple-feed walking foot sewing mechanism
Walking foot top feed, needle feed and bottom feed compound feeding system

Also available: the Highlead GC2698-1D, featuring an automatic thread trimmer, full-size electronic needle-positioning servo motor and operator control panel.
