New walking foot sewing machine £634 - click here
Juki Sewing Machines

Juki sewing machine logo



Juki DDL-8700B-7

Industrial sewing machine with

automatic thread trimmer



**Discontinued** see newer model DDL-900A


Juki DDL-8700B-7


The Juki DDL-8700B-7 has been introduced to replace the DDL-8700A-7 model.  It offers a new lower price by integrating the motor and control as part of the sewing machine head.

It is a value priced direct-drive, high-speed, lockstitch industrial sewing machine with an automatic thread trimmer and electronically controlled needle position motor.

In making this B model Juki used the established DDL-8700-7 model and adapted it by fitting a direct drive style motor system in place of the usual under bench motor.

Updates on the DDL-8700B-7 model include a built-in LED needle light which illuminates the area around the sewing foot.  A newly designed control panel has been better integrated into the motor housing and now offers more automatic stitch control functions. The main on/off switch is fitted on top of the machine and allows for quicker and easier assembly on to its included unit stand and table top (In Europe a different and larger on/off switch may be mounted under the wooden table top).

By providing a presser foot with a higher lift of 13mm, a light-touch stitch dial, a throat plate with marker grooves
that can be used as guide for seam allowance and other easy-to-operate functions the burden on the
operator is lightened and productivity is further increased.


Juki DDL8700B-7 with thread trimmer

Juki DDL 8700B control box

Control panel built-in to motor housing.

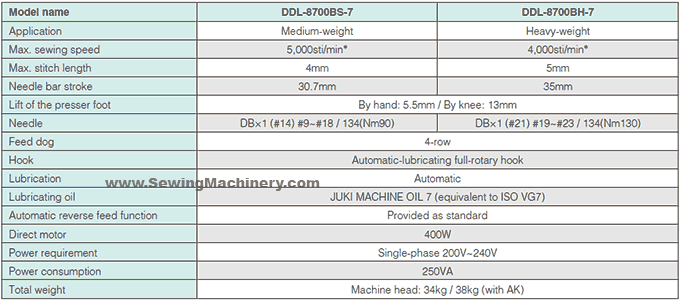

Specification

DDL-8700B-7 specification



DDL8700B-7 PDF leaflet

Juki DDL8700B PDF Instructions



**Discontinued** see newer model DDL-900A




Juki sewing machine logo

 Other Juki Models:
DDL-8700

Juki DDL8700

Juki DDL-8700 Single needle high-speed lockstitch sewing machine
DDL-8700-7Juki DDL8700-7 sewingJuki DDL-8700-7 Single needle UBT lockstitch sewing machine with automatic thread trimmer & stitch program.
DDL-8700B-7Juki DDL-8700B-7 sewing machineJuki DDL-8700B-7 UBT lockstitch sewing machine with automatic thread trimmer & integrated motor + LED needle light
DDL-900AJuki DDL900A linkJuki DDL-900A Single needle UBT. value priced dry sump direct drive model
 New Model DDL-900BJuki DDL900A linkJuki DDL-900B Single needle UBT. dry sump oil shielding direct drive model
DDL-9000BJuki DDL9000B linkJuki DDL-9000B Single needle UBT lockstitch sewing machine with Direct Drive ,automatic thread trimmer & stitch program.
Juki DU-1181NsampleJuki top & bottom feed sewing machine with large horizontal axis hook.
Juki DNU-1541sampleJuki walking foot sewing machine heavy duty with horizontal axis hook
LU-1509NJuki LU 1509NJuki walking foot heavy duty sewing machine with vertical axis hook
MO-6700Juki MO-6700 series overlockJuki MO 6700S series Overlock. High speed industrial overlock sewing machine model
DDL-8100e

Juki DDL-8100E

Juki DDL-8100e economy single needle lockstitch sewing machine.
MO-6500SJuki MO6514sJuki MO6500S economy overlock sewing machine



Juki DDL9000C series

with digital control drive mechanism.



Request more information on this machine HERE
