New walking foot sewing machine £634 - click here



Juki sewing machine logo


Juki DDL-900A

Discontinued

Industrial sewing machine with automatic thread Trimmer

Dry oil pan model

Replaced by Juki DDL-900B

Juki DDL900A dry oil pan @ braithwaite

Juki's DDL-900A utilizes the established design of the DDL-8700/8700B series and adds a new dry pan oiling system.

The sewing machine integrates the direct-drive motor, control box and control panel into a single package with the added benefit of the new dry oil pan mechanism.

The dry oil pan system helps to reduce oiling staining which is sometimes associated with conventional wet oil pan systems.  Oil is contained with-in a sealed aluminium sump. A lower amount of oil is supplied to the frame and needle bar area, when compared to conventional models, and an automatic oil recovery system helps further to reduce potential staining problems.

The Juki DDL-900A adds to Juki's range of single needle lockstitch sewing machines (replacing the previous DDL-8700B-7 model) and is offered as a less expensive alternative to the premium DDL-9000C model.


Specification:

Model name

DDL-900A

Application

From light to medium-weight

Lubrication

“DRY” Oil Pan System

Max. sewing speed

5,000sti/min

Max. thread trimmer speed

300sti/min

Max. stitch length

4mm

Needle bar stroke

30.7mm

Lift of the presser foot

By hand: 5.5mm / By knee: 13mm

Needle

DB×1 (#14) #9~#18 / 134(Nm90)

Lubrication oil

JUKI Machine Oil 1 or 7 (equivalent to ISO VG7)

Direct motor

400W

Power requirement

Single-phase 200V~240V

Power consumption

250VA

Total weight

Machine head: 36kg

Juki dry oil pan DDL-900a

Juki DDL900A

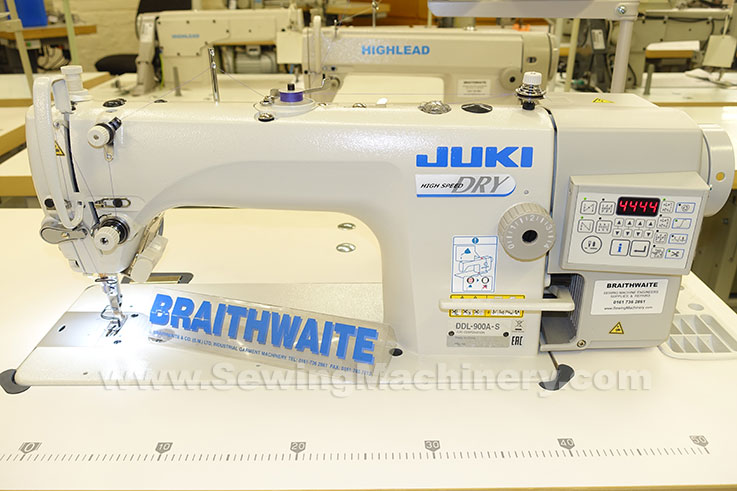

Juki DDL-900A-S on display at Braithwaite's Manchester warehouse

Juki DDL900A control panel
Juki control panel incorporated with the side mounted motor assembly





Juki_DDL-900A PDF leaflet
